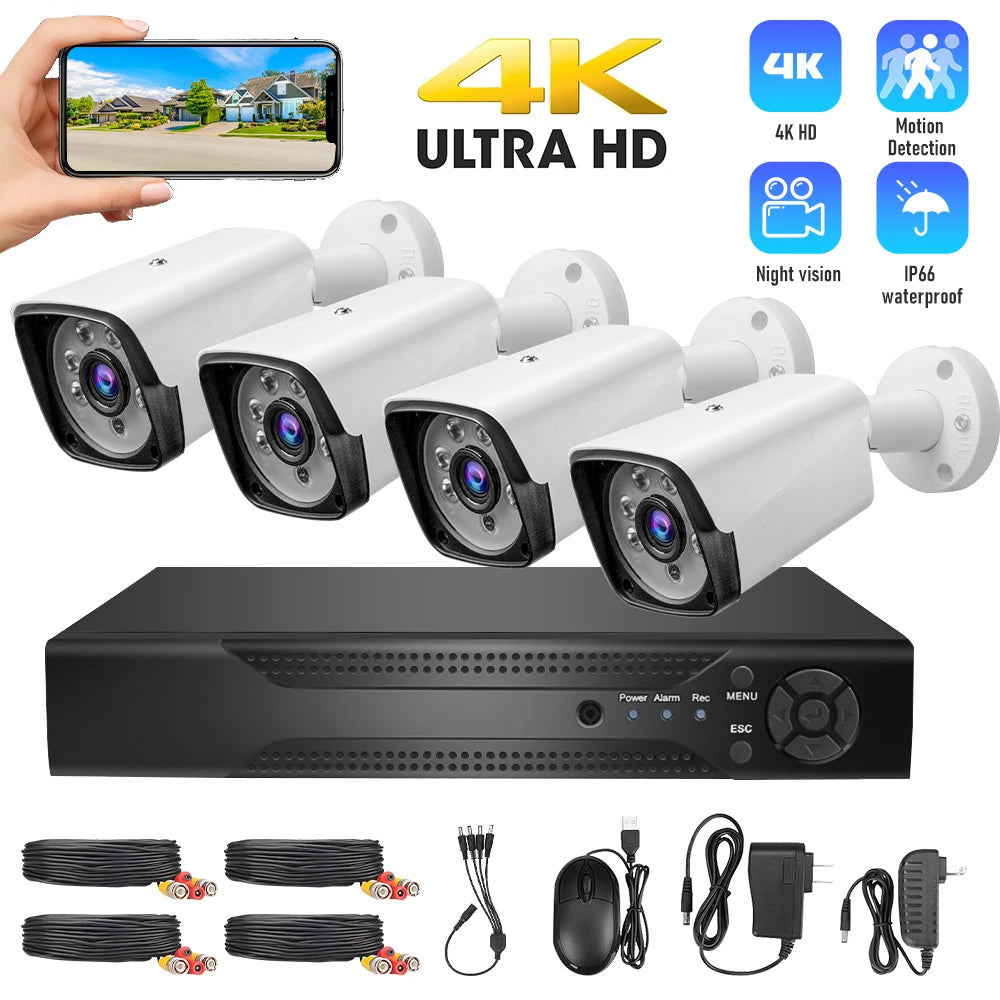

NightWatch 4K 5MP Outdoor CCTV Monitoring System

SPECIFICATIONS

PCS of Camera: 4PCS
Certification: CE, FCC
Model Number: Surveillance Camera Set
Resolution: 5MP
Power Supply: DC12V ± 10%
Power Consumption: <5W
Screen Display: 1/4 screen (coaxial input mode; varies based on channel mode)
USB Interface: 2 USB interfaces

Product Features

1. 24/7 Recording: Default factory setting enables 24-hour daily recording, with a customizable schedule.

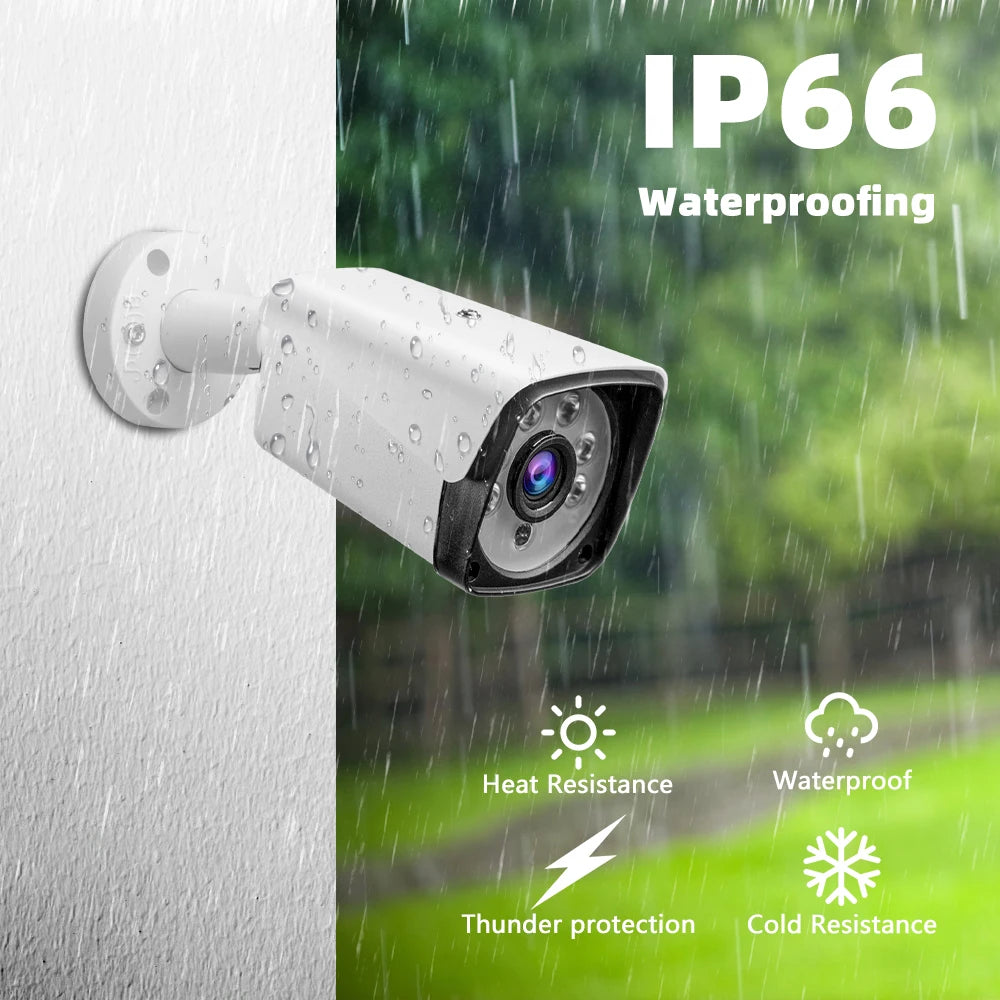

2. Day & Night Surveillance: Includes 4 full HD wireless cameras with IP66 waterproofing.
3. Night Vision: Infrared night vision up to 65ft, live streaming, motion detection alarms, and remote monitoring.

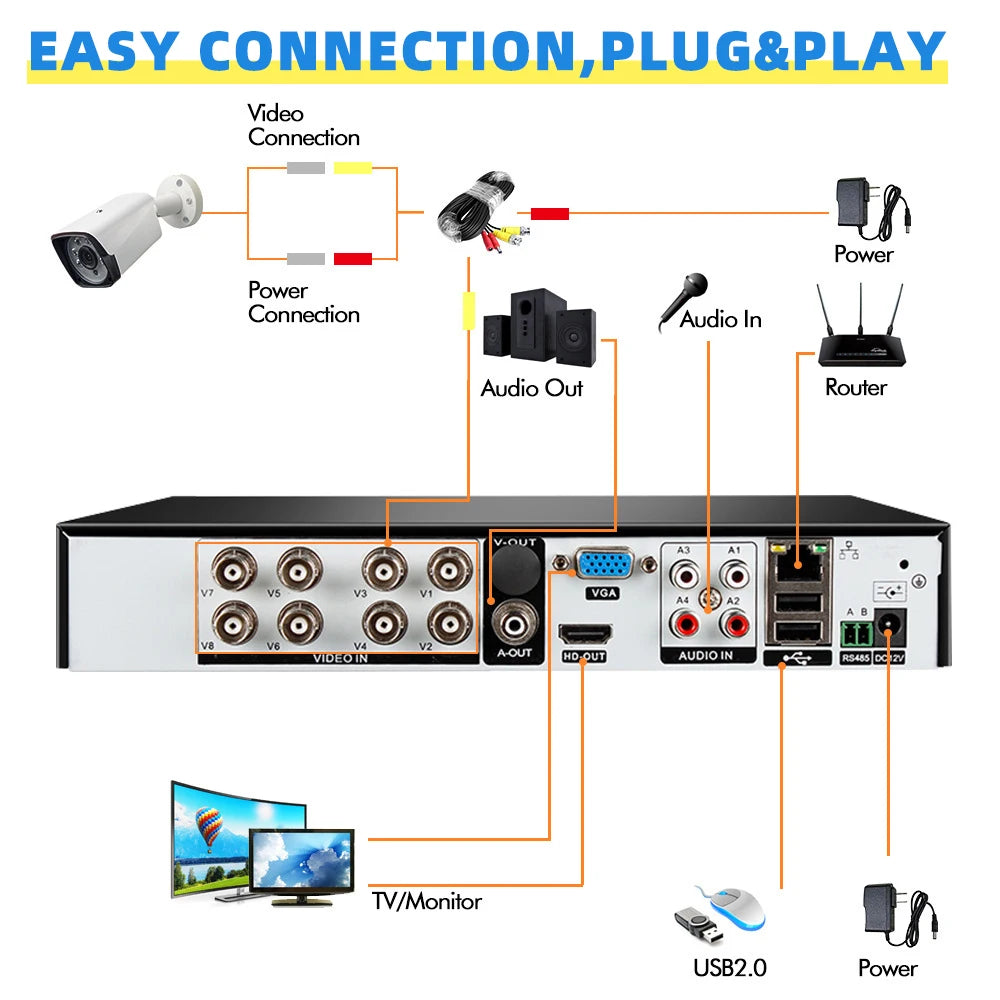

4. Easy Installation: Features auto-pairing technology; just plug in the camera and DVR power supply, connect the DVR to a monitor, and enjoy smooth, clear images during day and night.

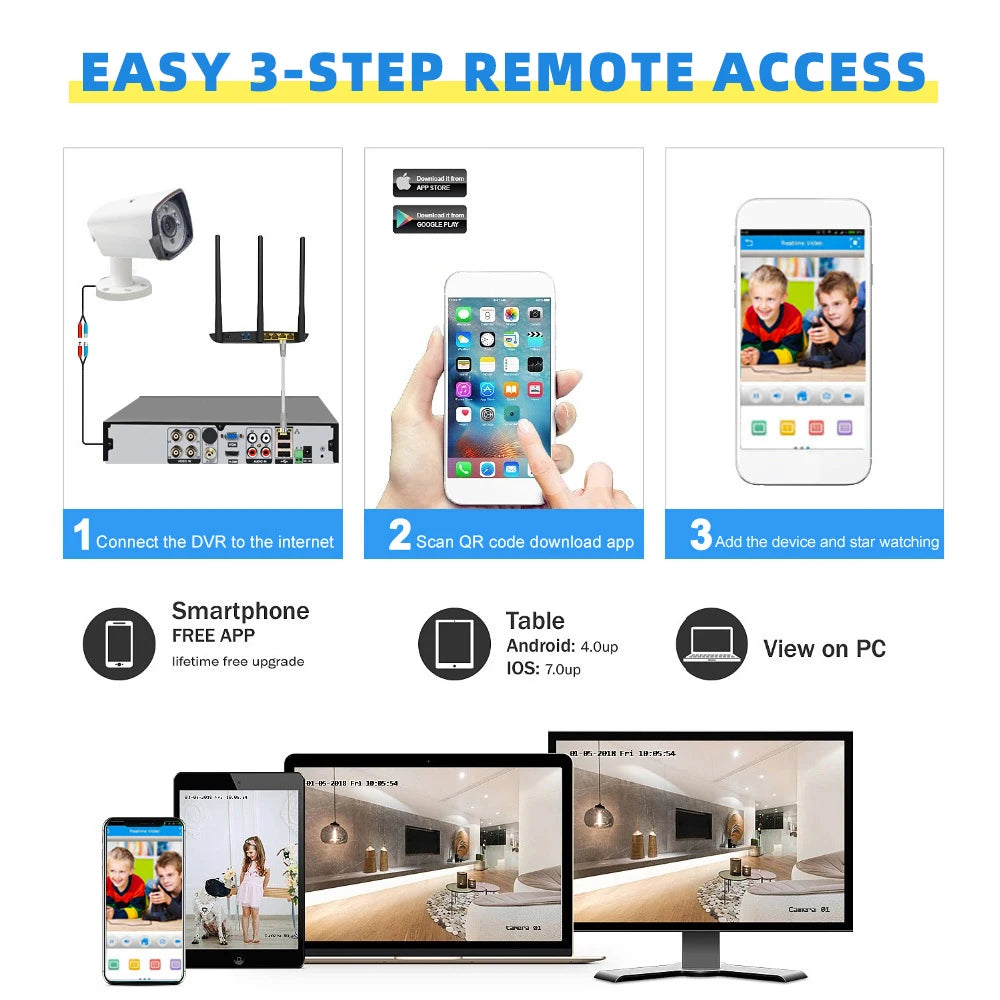

5. Remote Monitoring & Playback: Free application supports remote viewing and playback (DVR must be connected to a router via Ethernet cable).

Sourcing Specifications

Channels: 4CH + 1080P

Camera Parameters

• Signal System: XVI/AHD/TVI/CVI/CVBS
• Effective Pixels: 1920 x 1080 (PAL/NTSC)
• Minimum Illumination:
  • Color: 0.1Lux@(F1.2, AGC ON), 0Lux with IR
  • B/W: 0.01Lux@(F1.2, AGC ON), 0Lux with IR
• Photoresistor Port: 1 photoresistor interface, supports photoresist input, IR-CUT, and infrared lamp linkage.
• Shutter: 1/50(1/60) sec to 1/10,000 sec
• Day & Night Function: IR-CUT mechanical switching supported.
• Lens Parameters: C/CS interface; M12 lens optional.
• Video Output: 1080P@25fps
• Power Supply: DC12V ± 10%
• Operating Environment:
  • Temperature: -10°C to 60°C
  • Humidity: <90% (non-condensing)
• Power Consumption: <5W

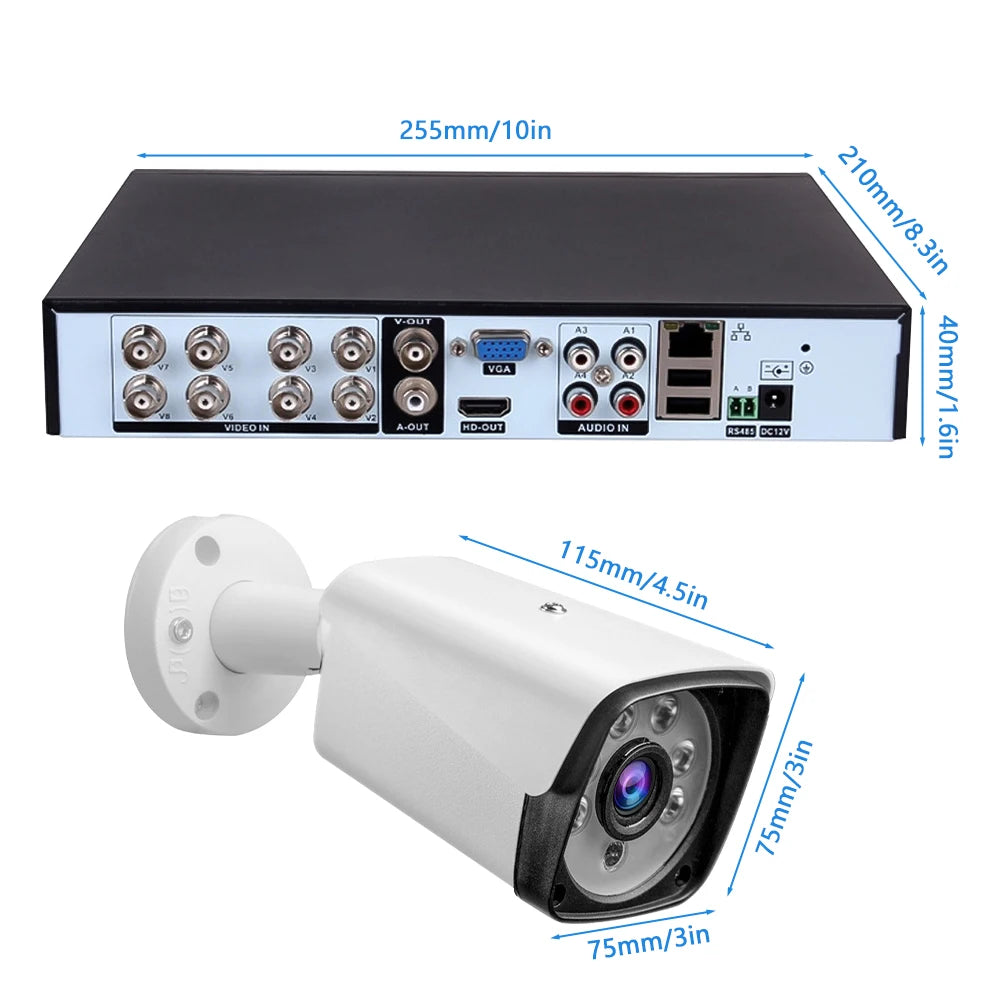

• Size: 32mm x 32mm (compatible with 38 positioning holes)
• Remarks: Standard coaxial control; supports coaxial upgrades and signal switching via tail line short or OSD menu.

VCR Parameters

• Screen Display: 1/4 screen (coaxial input mode; channel-dependent)
• Monitor Quality: VGA (up to 1080P) / HDMI (up to 1080P)
• Multi-Mode Input: Coaxial, hybrid, network
• Motion Detection: 192 (16 x 2) detection areas per screen
• Recording Mode: Manual, alarm, dynamic detection, timing
• Local Playback: 2-way/4-way playback
• Video Query: Supports time-point, calendar, event, and channel searches.
• Video Saving: Local hard disk, network storage
• Video Input Interface: 4-way BNC
• Video Output Interface: 1-way VGA, 1-way HDMI
• PTZ Control: Supports multiple PTZ protocols
• USB Interface: 2 USB interfaces

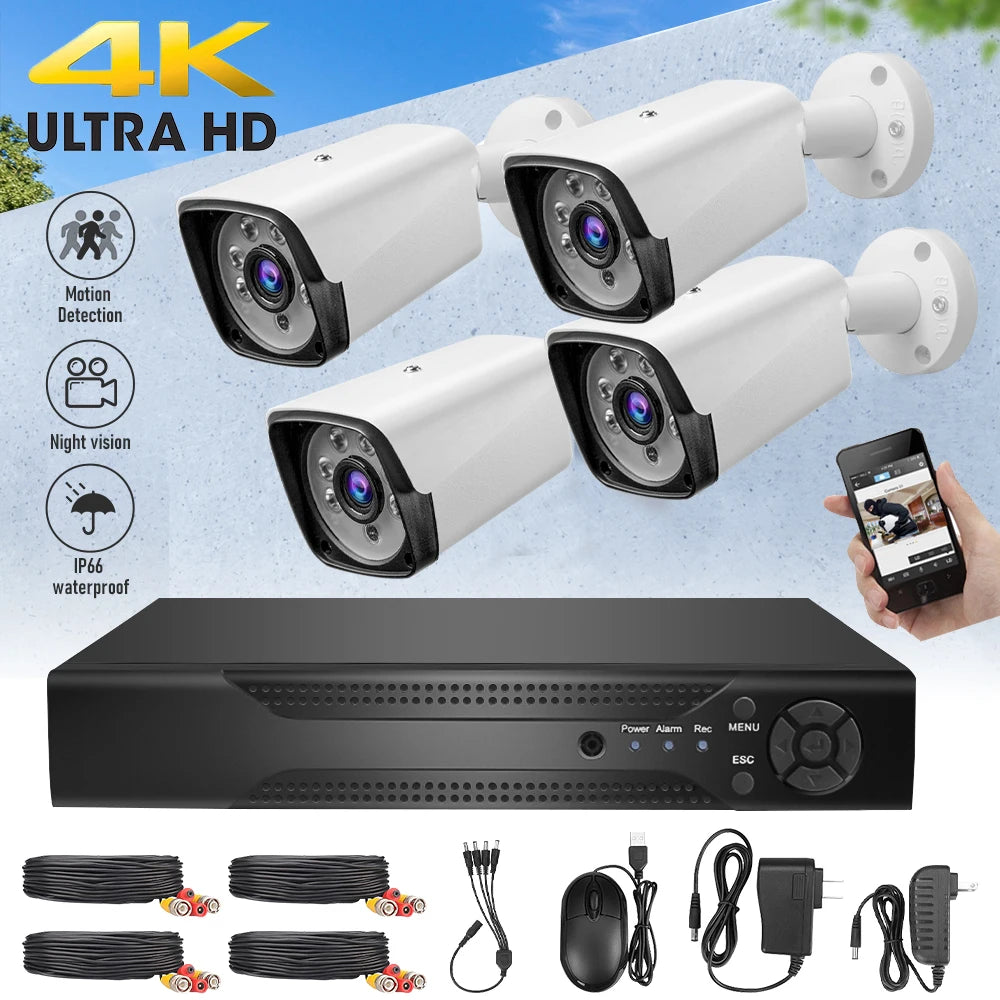

Product List

• Cameras: 4
• DVR: 1
• Camera BNC Extension Cables: 4
• Mouse: 1
• VCR Power Supply (U.S.G.): 1
• Camera Power Supply (U.S.G.): 1
• 4DC Power Shunt Cable: 1
